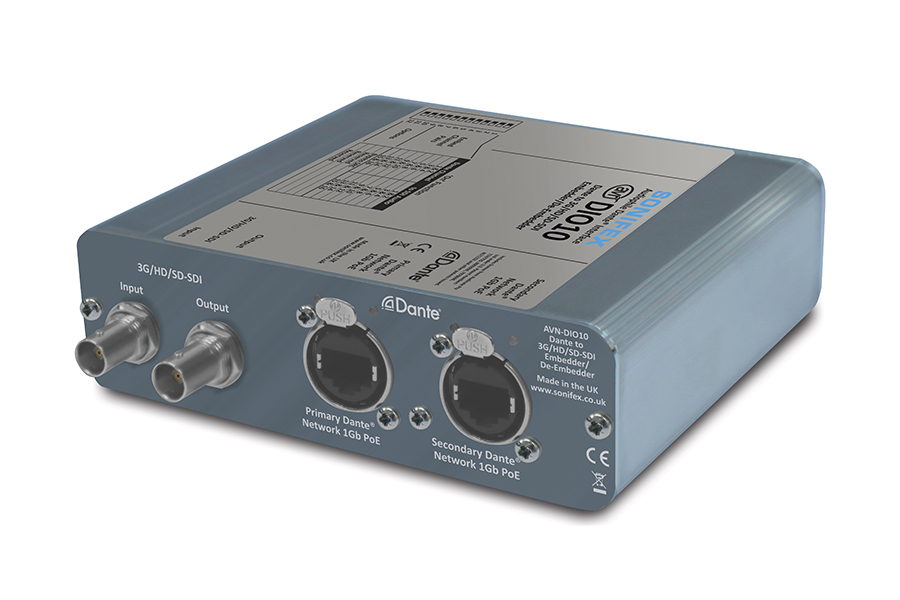

Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder
Available from Jan 2020, the Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder is our newest Dante product – the easiest way to connect legacy SDI equipment to the Dante network. The Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder can be used for simultaneous embedding and de-embedding of 16 channels of audio.
This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 3G/HD/SD-SDI equipment to the Dante AoIP audio network.
- 1 x 3G/HD/SD-SDI input.
- 1 x reclocked 3G/HD/SD-SDI output.
- Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
- Powered via PoE (Power over Ethernet) with PoE dual redundancy.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Web interface for configuration.
- Clock, SDI Lock, PoE and Sync LEDs.
- DIPSwitch selection of embed channel pairs.
- DIPSwitch cover plate to secure selections made.
- SDI audio sample rate support at 48kHz.
- All available Dante sample rates supported.
